Product Description

Kongsberg uPAP

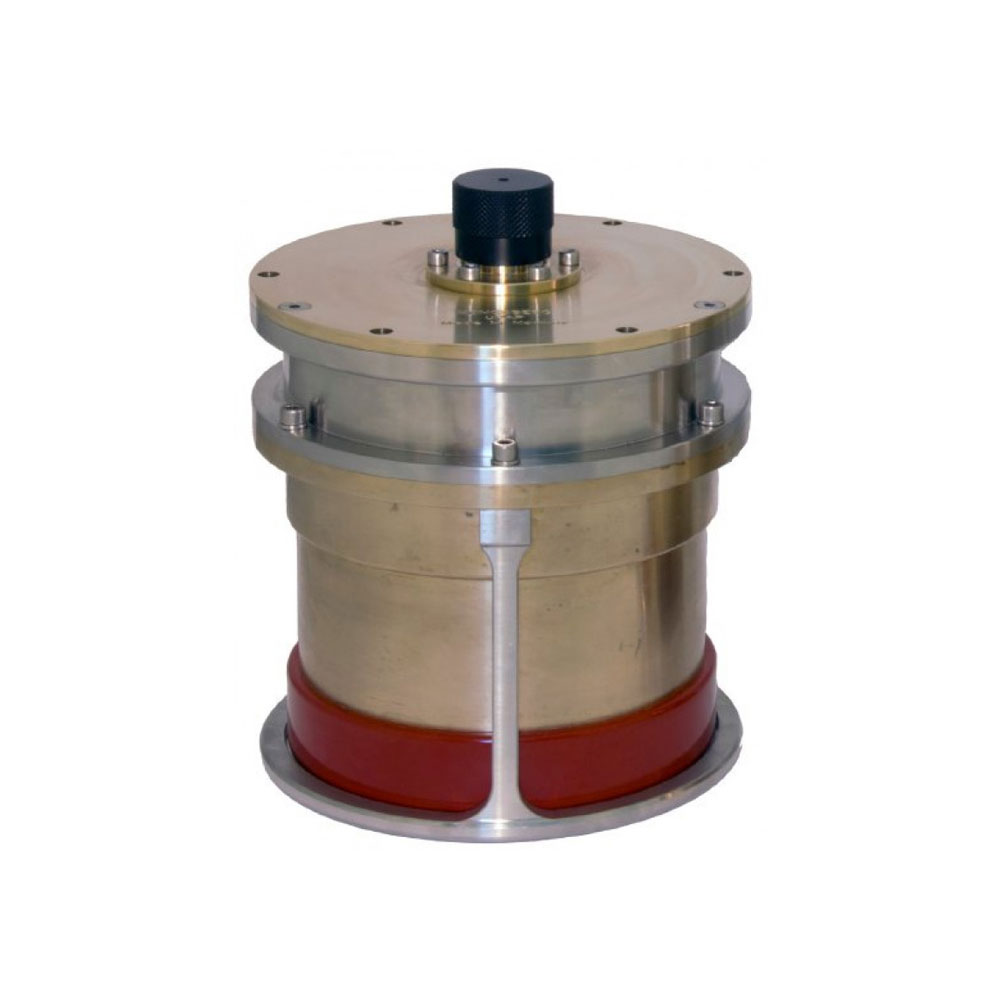

Equipment rental to supply the Kongsberg uPAP 200-NEL Portable system designed for tracking ROV’s, tow fish, divers and other subsea objects at several thousand meters range. Comes with portable operator unit, Kongsberg uPAP 200-NEL transducer, 25m cable, APOS base version for uPAP, and instruction manual.

Kongsberg uPAP is a small and compact acoustic positioning system for operation from a surface vessel to track ROV’s, tow fish, divers and any other subsea target at ranges to several thousand meters. The system operates in SSBL mode where it measures the distance and direction to subsea transponders and computes a 3D position in local coordinates or in geographical coordinates. µPAP is designed to be a portable system for easy installation on the vessel or other surface unit.

Key features

Online Help on screen

APOS operation advantages

Automatic electronic beam steering

Optional full LBL functionality Software

Latest technology for your future applications

Reliable through well proven HiPAP technology

More accurate than HPR 410P / 418P systems

Positions hundreds of underwater transponders and responders

Outputs position data to navigation systems in established formats

6 transducer models inclusive Non Export License require versions

µPAP Operator station processes inputs from Heading Sensor, GNSS and Sound Velocity Probe

Narrow pointing receiver beams, suppressing noise from other directions

The new optional Cymbal acoustic protocol introduces a number of improvements

Prepared for easy over-the-side mounting on vessel of opportunity – no gate valve

Cymbal acoustic protocol using Direct Sequence Spread Spectrum (DSSS) signals

High speed acoustic data communication using wide-band spread spectrum signals
