Product Description

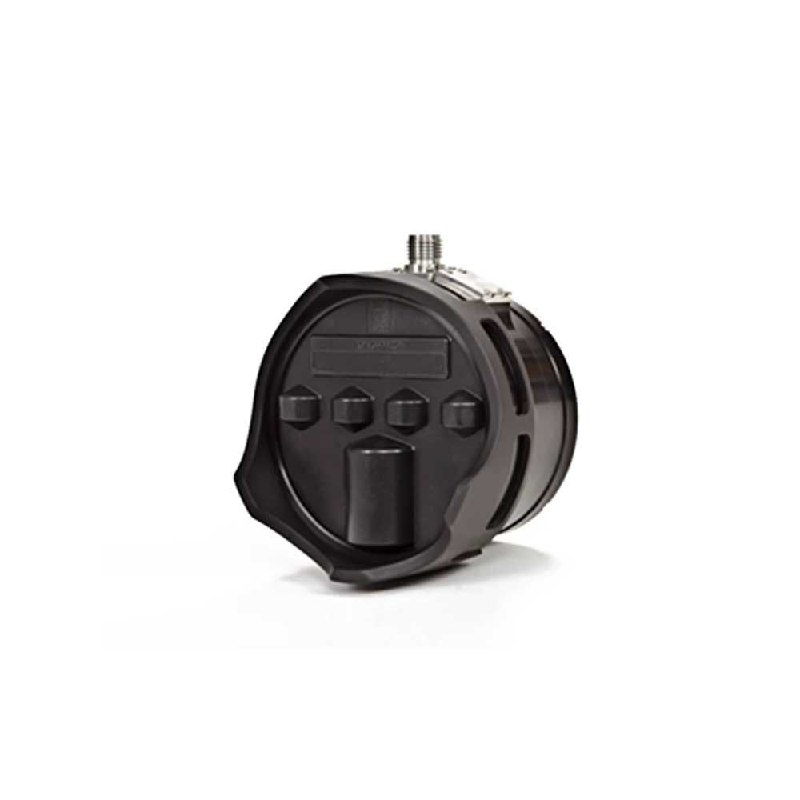

Kongsberg M3 Sonar HF
The M3 Sonar HF is a high-frequency sonar with imaging and profiling modes. It is an impressive upgrade to the original M3 Sonar, with an all-titanium construction and two-hundred percent higher resolution.
Distortion-free images over a 140° sector
Delivering superior image quality and coverage, the M3 Sonar HF provides high-quality distortion-free images over a 140° sector, reducing the time it takes to search for and locate targets. This versatile multibeam sonar offers both imaging and profiling capabilities.
High-resolution
Imaging data gathered from the M3 Sonar HF is high resolution, with cm-level feature detection capabilities that can be exported to a GeoTiff image. Features can be detected in imagery data that are not apparent in traditional bathymetric data. In addition, using the M3 Sonar HF with a third-party software driver, such as SoundTiles software, provides automatically-mosaiced images.
Bathymetric data
The M3 Sonar HF also provides excellent bathymetric data at very low cost. For profiling, using this sonar with HYPACK Hysweep provides 3D point-cloud data.
Key features
4000 m depth rating
700 kHz long-range mode up to 100 m
Excellent resolution and full 140° coverage at 950 kHz
1200 kHz and 1400 kHz for the highest resolution up close for target and feature identification
Portable enough to be deployed on an ROV or a Pole Mount
Distortion-free images at a high update rate
User-friendly interface
CHIRP and Doppler modes of operation
Significant time savings
| Kongsberg M3 Sonar HF (Rental) |
| The M3 Sonar HF is a high-frequency sonar with imaging and profiling modes. It is an impressive upgrade to the original M3 Sonar, with an all-titanium construction and two-hundred percent higher resolution. |
