Product Description

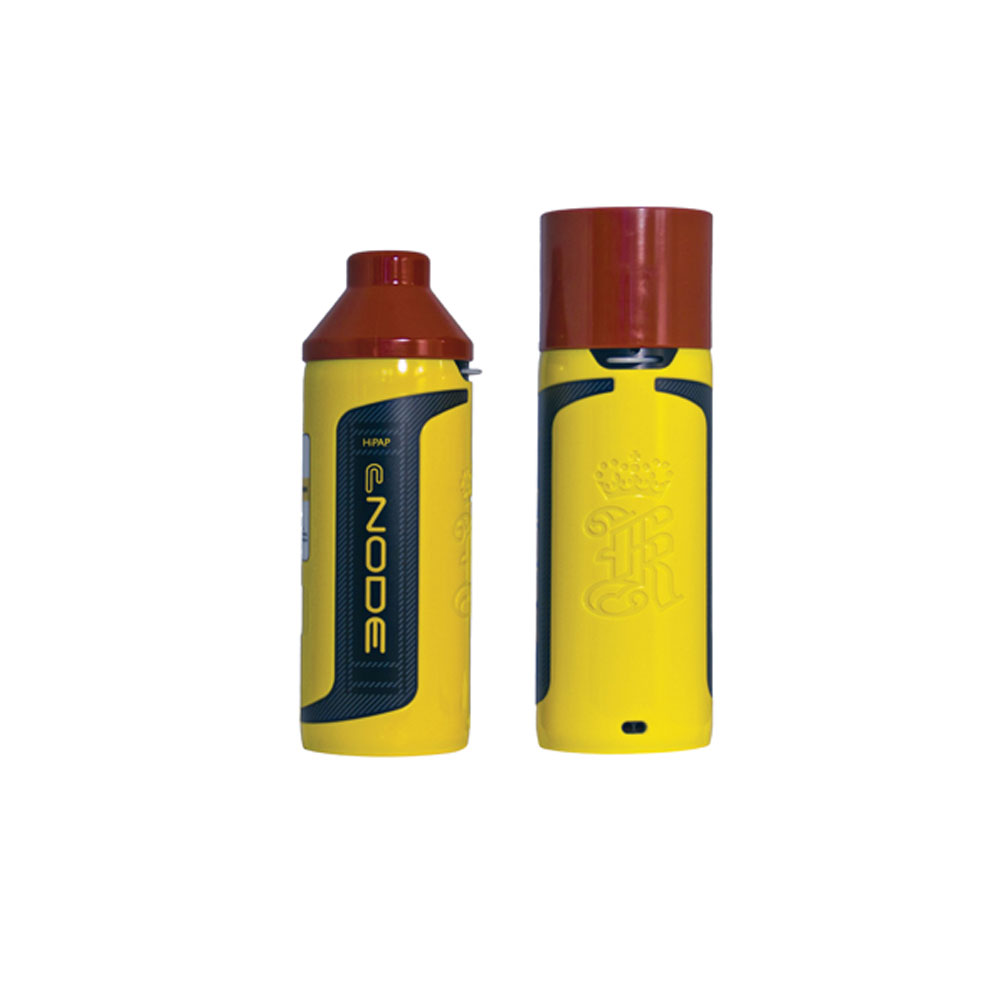

Equipment rental to supply a cNODE? MiniS transponder. Small and light enough to be used by divers and shallow water ROV’s. Comes with pressure sensor rated to 1000m, charging kit and transit case.
Kongsberg Maritimes cNODE MiniS transponders, are one of the most advanced HiPAP mini SSBL and LBL transponders in the market today. The cNODE MiniS covers an impressive range of features, as well as 500+ Cymbal digital acoustic channels.
The cNODE MiniS transponders are easy to utilise together with HiPAP, cPAP and μPAP systems in underwater positioning and are ideal for positioning of ROVs. The MiniS also operate with data telemetry, for example checking battery status, transmitting power level and measuring LBL baselines.
For towfish tracking application, models with in-built presseure sensor is also available.
Key features
Cymbal channels (500+)
Responder and transponder functionalities
Telemetry capabilities
SSBL positioning
LBL positioning
Range measurements between transponders
Down to 4000 metre depth rated
Various transducers available for a wide range of applications
Coated anodised aluminium housing
Internal rechargeable Li-Ion battery
On deck battery charger available
External Power; 24VDC (20 – 28V), 1A
External connector for configuration and software update
Transmitting power; Max, High, Low, Min (6 dB steps)
External on/off function
Internal tilt sensor ± 90°
Pressure relief valve (safety device)
Frequency band 21-31kHz
Operating temperature -5ºC to +55ºC
