Product Description
Equipment rental to supply a cNODE? Micro transponder. Small and light enough to be used by divers and shallow water ROV’s. Comes with pressure sensor rated to 600m, charging kit and transit case.

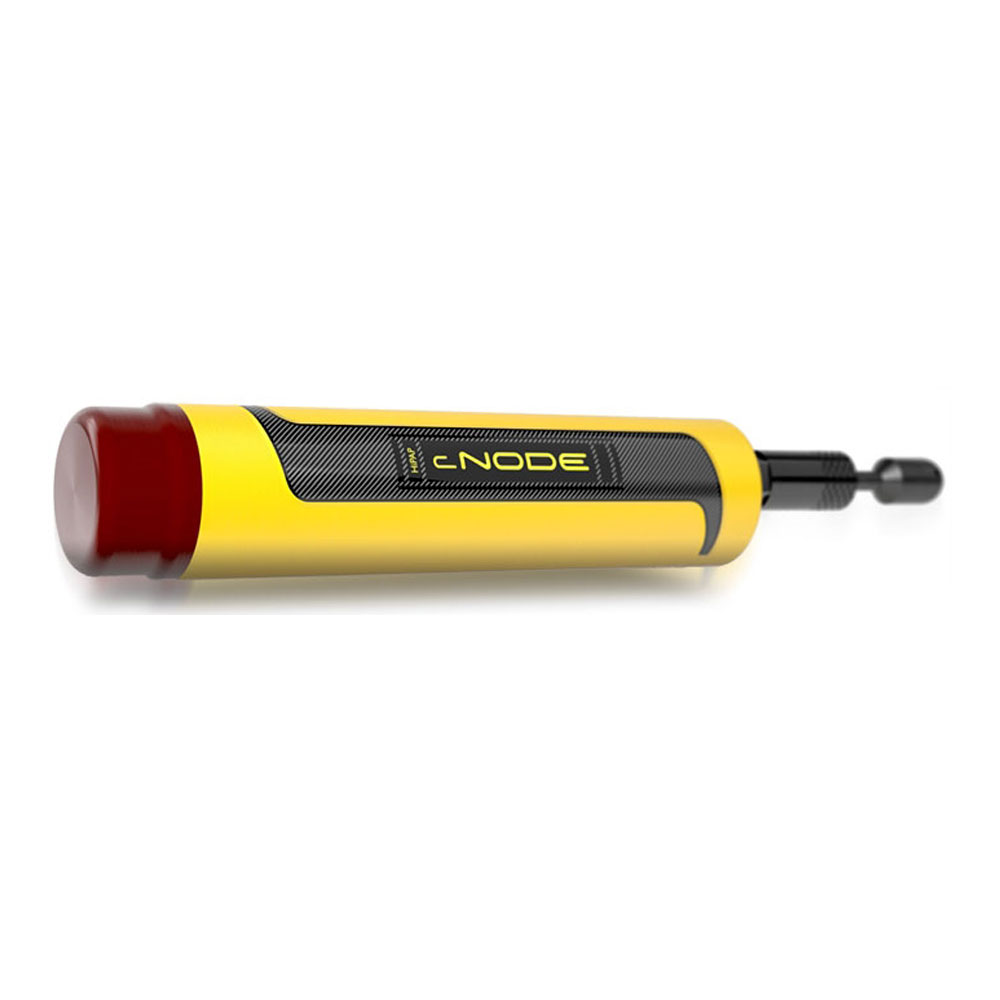

The cNODE® Micro transponder rated to 600 meters, is small and light enough to be used by divers and shallow water ROV’s. Operating on KONGSBERG Cymbal digital acoustic protocols the cNODE Micro provides the optimal positioning performance with the KONGSBERG range of SSBL systems from µPAP® through to HiPAP®.
The telemetry capability allows the battery status to be read during operation and the integrated tilt sensor can be turned on and off with positioning updates. Multiple cNODE® Micro transponders can be interrogated simultaneously in SSBL positioning mode using the µPAP® and HiPAP® Fast track feature to ensure the fastest possible updates during operation.
Features
Some common features of the cNODE® Micro include:
Cymbal channels (500+)
Acoustic telemetry for battery status and tilt sensor
Responder and transponder functionalities
SSBL positioning
LBL positioning
Range measurements between transponders
600 metre depth rated
180º omnidirectional beam
Coated Anodised aluminium housing
Internal rechargeable Li-Ion battery
External connector for configuration, software update and charging
External on/off function
Internal tilt sensor ± 90°
Pressure relief valve (safety device)
Frequency band 21-31 kHz
Operating temperature -5 ºC to +55 ºC
Technical specification
Dimensions (Length X Diameter): 245 x 55 mm
Depth rating : 600 m
Beam width : 180º
Source level – max : 170 dB
Trigger level : < 85 dB
